Manual Heated Hydraulic Press
Hench is a trusted hydraulic press manufacturer, offering high-performance heated hydraulic presses and hydraulic heated press models for laboratories and industrial use. For inquiries or quotes, Contact us today.
-

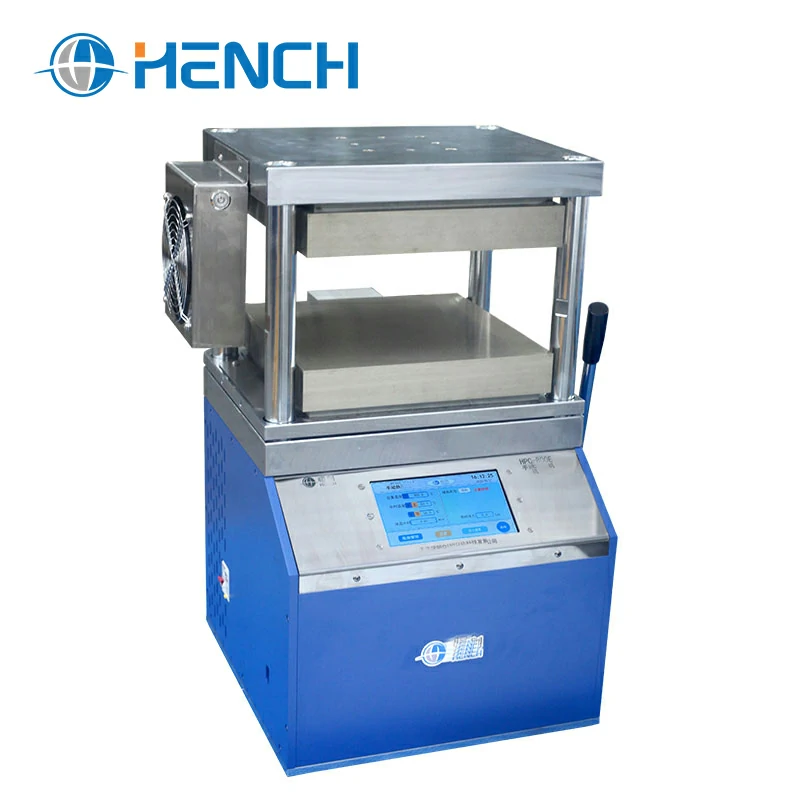

Manual Integrated Hot Hydraulic Press HPC-800E/F
Model：HPC-800E/F
Pressure range:0-24T/30
Piston diameter:95mm/110mm
Cylinder stroke:60mm
Temperature range:Room temperature-800°C
Die size:300x300mm/400×400mm
Effective space:150x60mm
Equipment power:2500W/5100W
Size：455x410x455mm/560x600x625mm
Weight：365Kg/425Kg
-

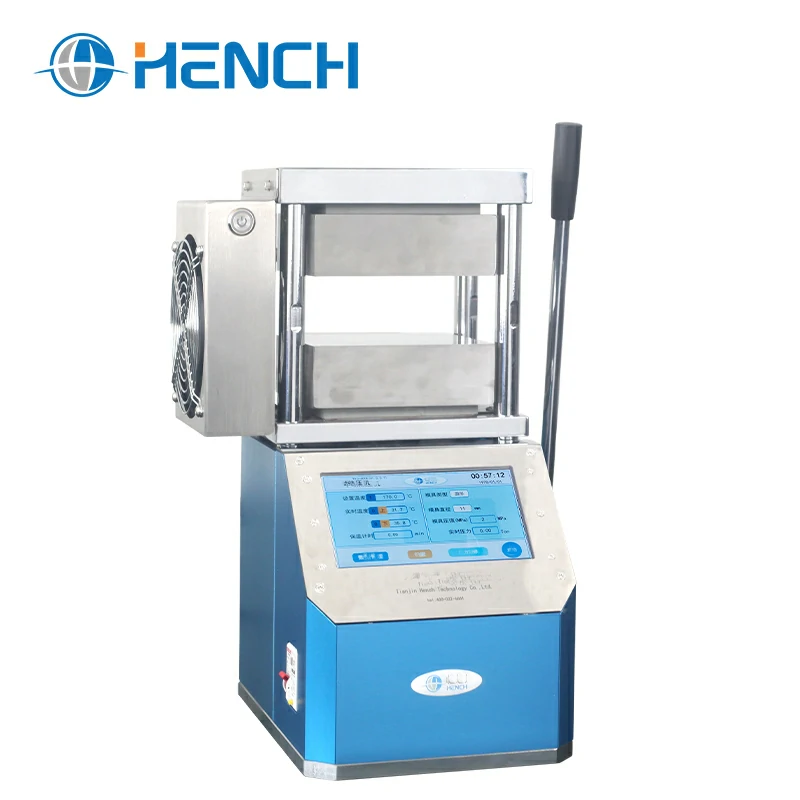

Manual Integrated Heating Tablet Press Machine HPC-800D/DG
Model：HPC-800D/DG
Pressure range:0-10T
Piston diameter:65mm
Cylinder stroke:60mm
Temperature range:Room temperature-800°C
Die size:150x150mm
Effective space:150x60mm
Equipment power:1300W
Size：300x400x435mm
Weight：62Kg
-

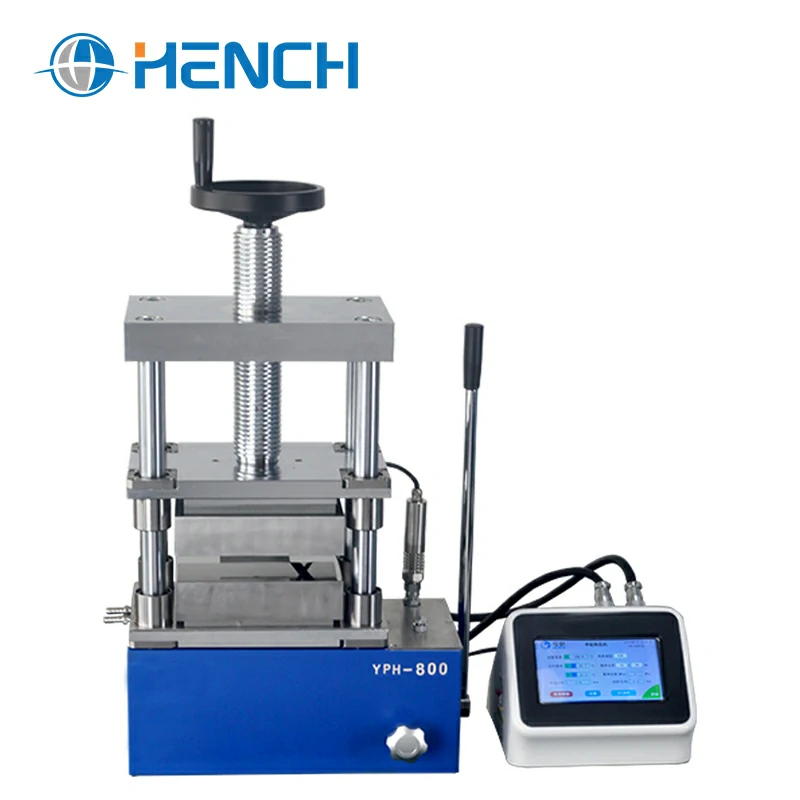

Manual Hot Press Hydraulic Machine Large Panel YPH-800D
Modle:YPH-800D
Pressure limit:0-30T
Piston diameter:110mm
Cylinder stroke:50mm
Temperature range:Room temperature -800°C
Heating range:300°C
Die size:200x200mm
Effective space:200x140mm
Input Power：220V(50Hz/60Hz)/0ptional 110V
Equipment power：1900W
Main engine size：450x260x725mm
Thermostat size：230x270x180mm
Weight：183Kg
-

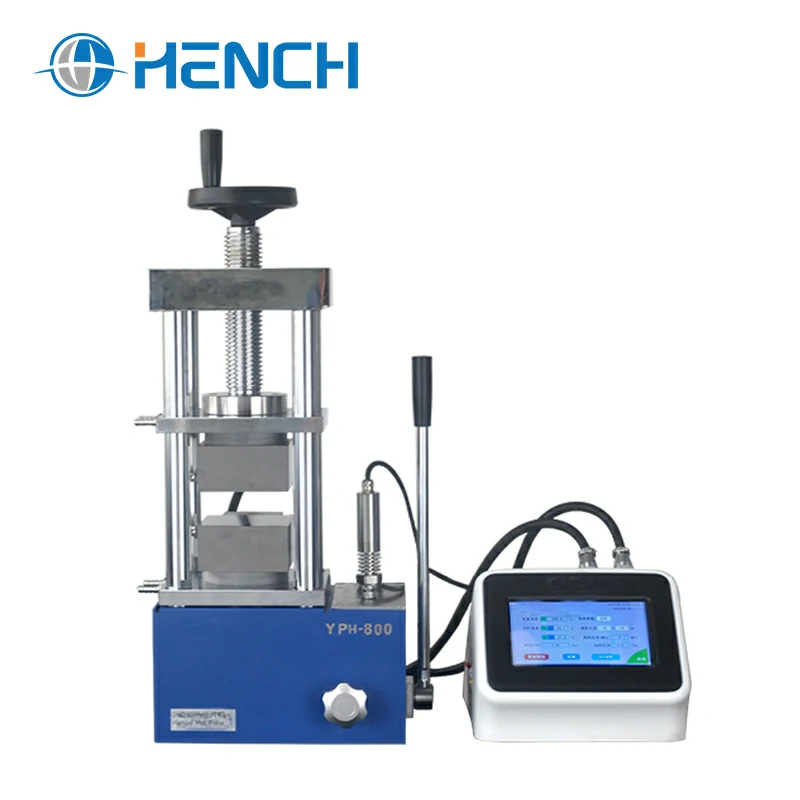

Hot Tablet Press Handheld YPH-800C
-
Pressure & Cylinder: 0–24T pressure limit with a 95mm diameter piston diameter and 30mm stroke.
-
Thermal Performance: Max. 300℃ heating range (thermostat up to 800℃ powered by a 1300W aluminum heating core and premium imported mica insulation.
-
Molding Space: Equipped with 100×100 electroplated polished plates and an 80×140 effective working space.
-
Smart Control: 7" LCD touchscreen supporting English/Chinese toggle. Displays automated MPa pressure conversion via PCB program, with customizable control accuracy up to 0.1T/ ±0.1℃.
-
Advanced Profile: 5-stage programmable temperature control (auto-heating, auto-insulation, natural cooling) with manual unlimited dwell time.
-
Safety & Structural Design: Rigid 4-column positioning with an upper plate screw suspension design; features an automated high-temperature alert >5℃ anti-scald prompt).
-
Power & Dimensions: 220V (50Hz/60Hz) / Optional 110V; compact footprint with a 68kg total system weight.
-
Precision Heated Hydraulic Presses for Laboratory Applications
Hench’s heated hydraulic press series delivers precise temperature and pressure control, ensuring uniform compaction and optimal sample quality. Ideal for laboratory testing, material research, and sample preparation, these presses improve workflow efficiency while maintaining accuracy and reliability.
Versatile Hydraulic Press Machines for Diverse Needs
Alongside heated models, Hench provides a full range of hydraulic press machines suitable for various laboratory and industrial applications. From small-scale research to production-level operations, these machines offer consistent performance, durability, and safety for every pressing requirement.
Comprehensive Lab Supplies and Equipment
To complement our presses, Hench offers high-quality lab supplies equipment, including tools and accessories for sample preparation and testing. This ensures laboratories and manufacturers have a complete solution for efficient, accurate, and safe pressing operations.
