40-ton electric isostatic press hydraulic machine

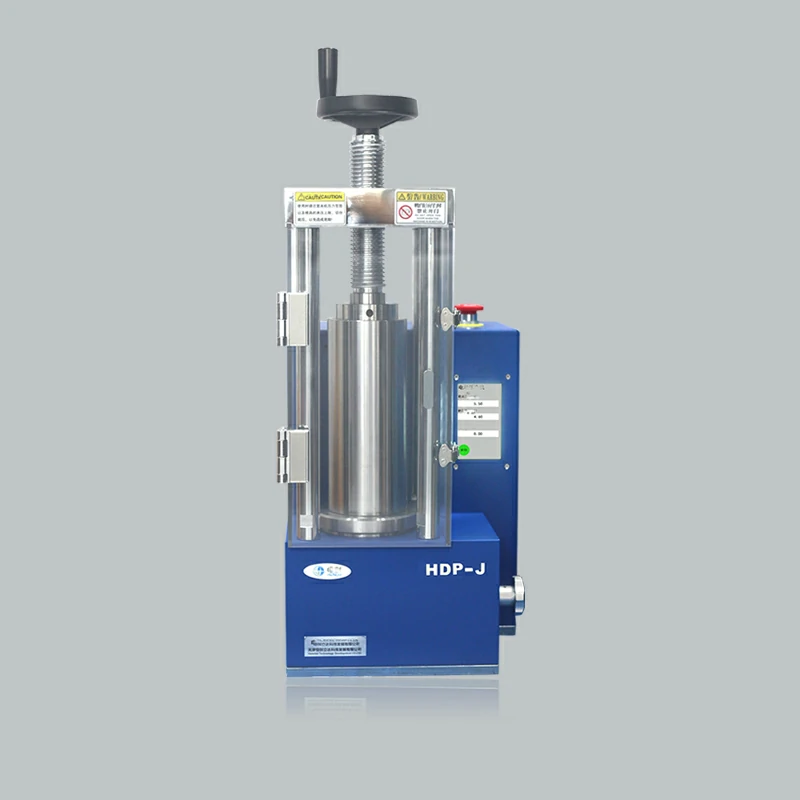

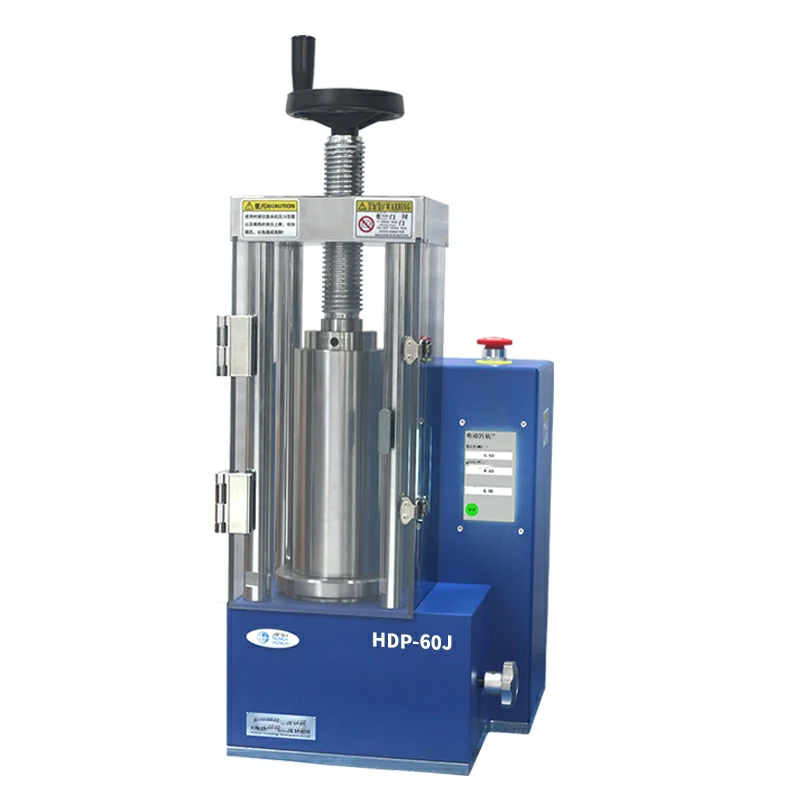

20/40/60-ton Isostatic Electric Press Machine HDP-J

Model：HDP-20/40/60J

Pressure range：0.5-40.0T

Cylinder diameter：Φ130mm

Cylinder stroke：≤50mm

Cavity size：40x150mm

Cavity material：3 Chrome 13# Die steel

Environment temperature：9°C-42°C

Maximum pressure：≤300Mpa(500Mpa can be customized)

Pressure die：Electric PCB program buffer pressurization/automatic precise pressurization, manual pressure relief

Dwell time：Unlimited time (N seconds)

Display usage：4.5-inch LCD touch screen/English interface can be set

Setting method：Touch directly to modify the set value (convenient and fast)

Cylinder limit protection：Cylinder above the limit height automatic pressure relief

Number of columns：4 Root

Pressure stability：≤1Mpa/10min

Massive structure：Forging process, integrated structure, integral form structure, no pressure and no oil leakage

Device safety：Program pressure mechanical fault emergency stop function,5mm plexiglass protective door, snap lock safe and convenient

Passive safety：Leakage protection + emergency stop switch + Plexiglass shield

Table diameter：148mm

Size：355x450x715mm

Weight：152Kg

Equipment power：400W

Input Power：220V(50Hz/60Hz)110V can be customized

Send email to us

Product Detail

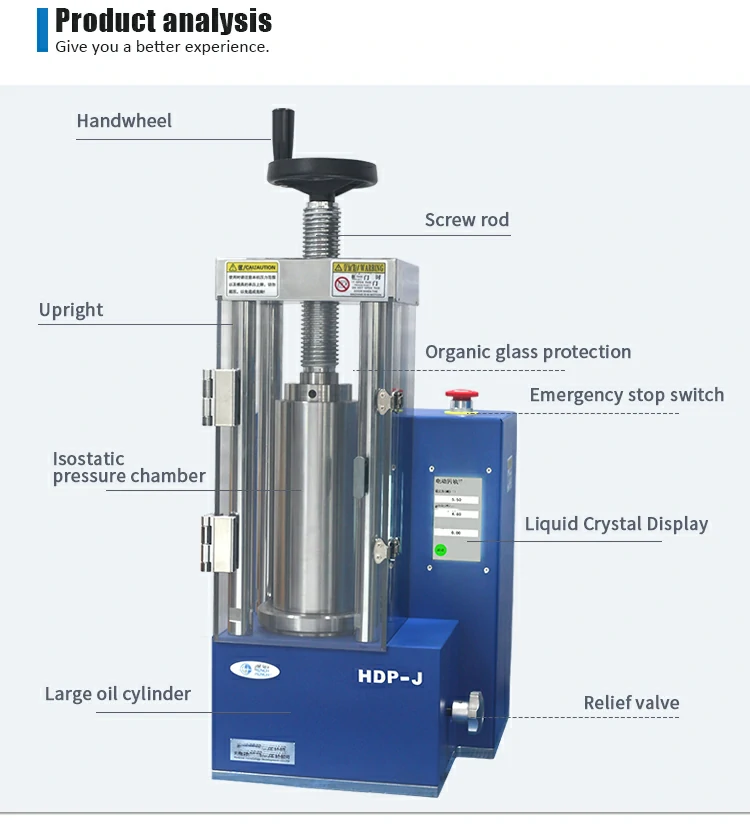

Isostatic Electric Press Machine Overview

The HDP‑J series is a desktop-to-pilot scale electric press machine designed to deliver uniform isostatic pressing for powders, polymers, and composite materials. Its precise electric pressing mechanism ensures consistent sample quality every cycle.

Technical Advantages

Available in 20T, 40T, and 60T configurations, the press allows fully programmable pressing cycles for reproducible results.
Advanced control system offers adjustable pressure, dwell time, and pressing sequence, a hallmark of high-performance hydraulic press machines.
Compact yet sturdy design integrates easily into laboratory settings while supporting reliable industrial-level operation.

Practical Applications

Perfect for laboratories, R&D centers, and pilot production, the HDP‑J is suitable for pressing tablets, pellets, and composite materials. Its precision makes it an essential piece of lab supplies for research and experimental workflows.

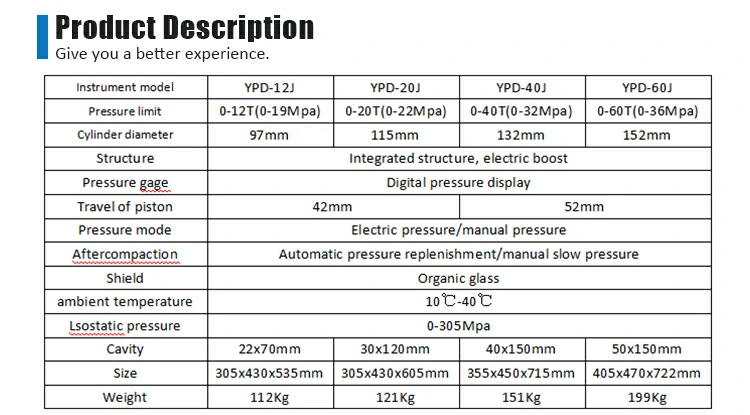

Product Description

Instrument model	YPD-12J	YPD-20J	YPD-40J	YPD-60J
Pressure limit	0-12T(0-19MPa)	0-20T(0-22Mpa)	0-40T(0-32Mpa)	0-60T(0-36Mpa)
Cylinder diameter	97mm	115mm	132mm	152mm
Structure	Integrated structure,electric boost
Pressure gage	Digital pressure display
Travel of piston	42mm		52mm
Pressure mode	Electric pressure/manual pressure
Aftercompaction	Automatic pressure replenishment/manual slow pressure
Shield	Organic glass
ambient temperature	10∘C−40∘C
Isostatic pressure	0-305Mpa
Cavity	22x70mm	30x120mm	40x150mm	50x150mm
Size	305x430x535mm	305x430x605mm	355x450x715mm	405x470x722mm
Weight	112Kg	121Kg	151Kg	199Kg

Hench Advantage

Hench Technology Co., Ltd., based in Tianjin, China, is a leading hydraulic press supplier with decades of experience in laboratory and industrial press solutions. Hench provides durable, safe, and efficient presses that integrate seamlessly into laboratory and production workflows, supported by professional service and global quality standards.
