ir hydraulic press ir dies heating dies
Enhance your FTIR sample preparation with Hench Technology's high-quality IR hydraulic press dies and heating dies. Designed for precision and durability, our dies ensure consistent pellet formation for accurate analysis. Explore our range of products and find the perfect match for your laboratory needs. Contact us today to learn more or request a quote.
-

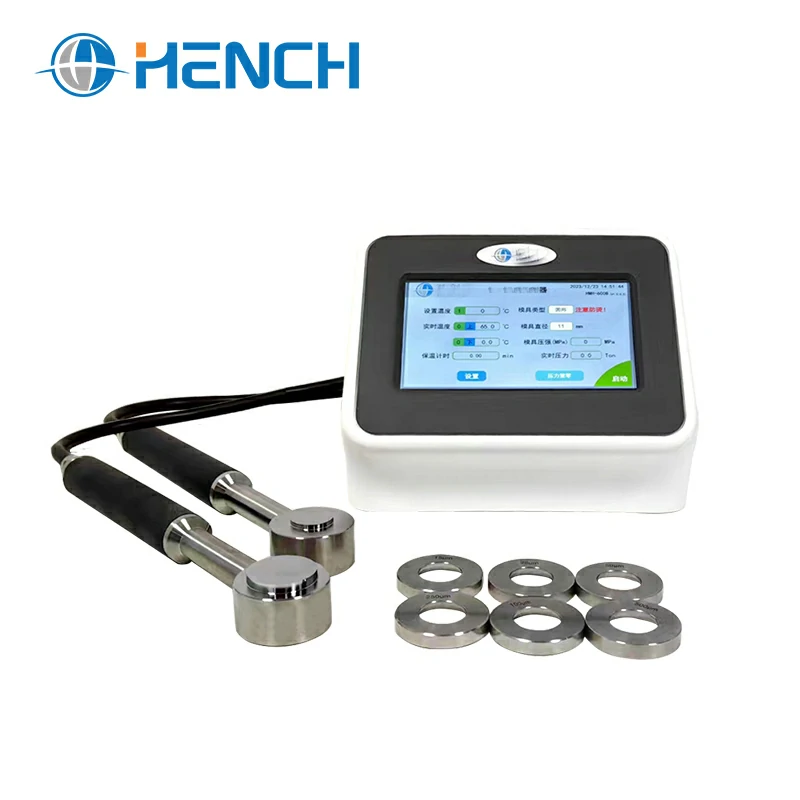

Heated Press for IR Samples HMH-800
Instrument model：HMH-800
Heatingrange：300°C
Mode of heating：Unipath/Two-channel
Device power supply：220V(50Hz/60Hz)
Die size：280x50x30mm(LxWxH)
Display usage：7 "touch LcD display
Heating rod power：300W/400W
Die material：Alloy tool steel
-
HM-7 7mm IR Heated Die Set – No demolding
Model：HM-7
Sample diameter：7mm
Mold type：No demoulding
Indenter material：Cemented carbideYT15
Indenter hardness：HRC85-HRC90
Cavity depth：5mm
Die size：24x35mm
Insert size：76x50mm
Weight：0.35Kg
-
HM-12 13mm IR Tablet Press Dies – Demould
Model：HM-12
Sample diameter：13mm
Mold type：Demould
Mold material：Chrome 13# alloy tool steel
Indenter material：cemented carbide
Indenter hardness：HRC85-HRC90
Sample size：Ф 13mm
Cavity depth：20mm
Boundary dimension：50x78mm
Weight：0. 76Kg
-
HM-2 13 IR No Demould Dies
Model：HM-2
Material：Hard Alooy YT-15
Indenter hardness：HRC85-HRC90
Sample size：Diameter:13mm
Cavity depth：10mm
Dimensions：76x50x70mm
Weight：0.75Kg
-
NDM-2 2-ton Portable IR Hydraulic Press Machine
Instrument model：NDM-2
Pressure range：0-2T
Piston diameter：20mm
Throw of a piston：5mm
Pressure stability：<lMpa/10min
Workbench diameter：20mm
Number of columns：2
Column spacing：55x50mm
Size：105x265x230mm
Weight：4.8Kg
-
NDM-15 15-ton Laboratory IR Press
Model：NDM-15
Pressure limit：0-15(0-35MPA)
Piston diameter：Chrome plated cylinderФ80mm
Massive structure：The equipment has no sealedconnection to reduce oil leakage points
Pressure gage：Pressure pressure dual scale display
Travel of piston：32mm
Table diameter：Ф80mm
Number of columns：2 pillars
Column spacing：84x86mm
Size：196x260x380mm
Weight：17.8Kg
Precision-Engineered IR Hydraulic Press Dies
Hench Technology offers a comprehensive selection of IR hydraulic press dies, meticulously crafted to meet the rigorous demands of infrared spectroscopy. Our dies are available in various sizes, including 7mm and 13mm diameters, and are made from high-quality materials such as cemented carbide and chrome alloy tool steel. These dies are designed to produce uniform and reproducible pellets, essential for accurate FTIR analysis.
Advanced Heating Dies for Enhanced Sample Preparation
For applications requiring elevated temperatures, our heating dies provide controlled heating up to 500°C. These dies are ideal for preparing polymer films or ceramic powder pellets, offering versatility in sample preparation. The integration of heating capabilities ensures optimal sample consistency and enhances the quality of analytical results.
