laboratory presses
Discover Hench Technology’s range of precision laboratory presses, designed for efficient sample preparation and reliable performance. For inquiries or quotes, contact us today.
-

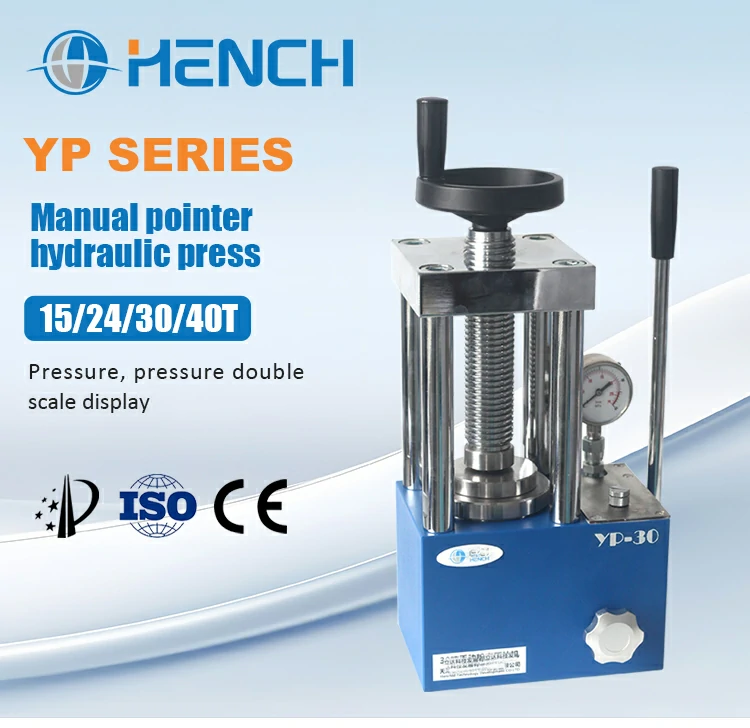

15/24/30/40-ton Manual Pointer Lab Press Machine YP
Manual Pointer Lab Press Machine features
This series of hydraulic presses are small in size, light in weight, oil-proof, easy to carry, and can be placed in a glove box for use. They have dual dial indicators (pressure tons) and (cylinder pressure MPa) for dual display, eliminating the need for conversion when applying pressure, thus avoiding mold overpressure.
Design & Daily Use
-
The press uses a pointer gauge with dual-scale display (tons and MPa), eliminating the need for manual conversion and reducing the risk of die damage.
-
Four-column structure enhances stability under load, and integrated components minimize points of leakage.
-
Compact footprint and relatively light weight allow placement in glove boxes or constrained lab spaces.
Safety & Precision Control
-
Pressure stability is maintained under ≤1 MPa variation over 10 minutes, ensuring consistent sample pressing.
-
The machine is built for safe operation with robust mechanical design and reliable pointer instrumentation.
Related Products & Supplies
-
For larger or differently featured units, see our full line of hydraulic press machines.
-
To support sample prep beyond pressing, we offer various lab supplies such as dies, accessories, and other prep tools.
-
If you prefer finer digital read-outs or tablet-making features, our manual tablet press machines can be better suited.

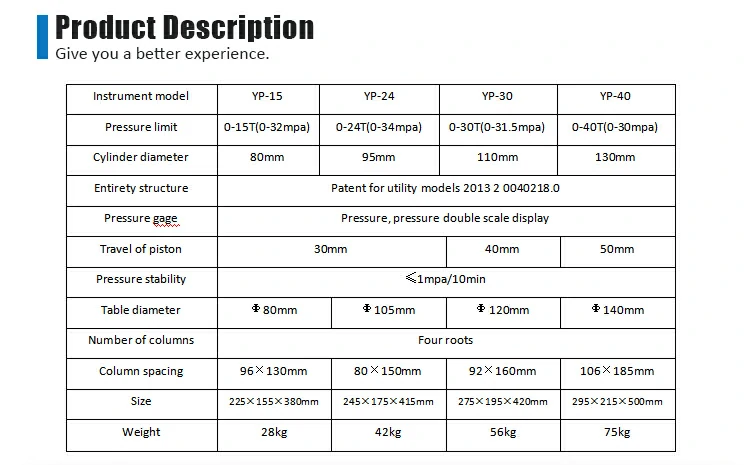

Product Description

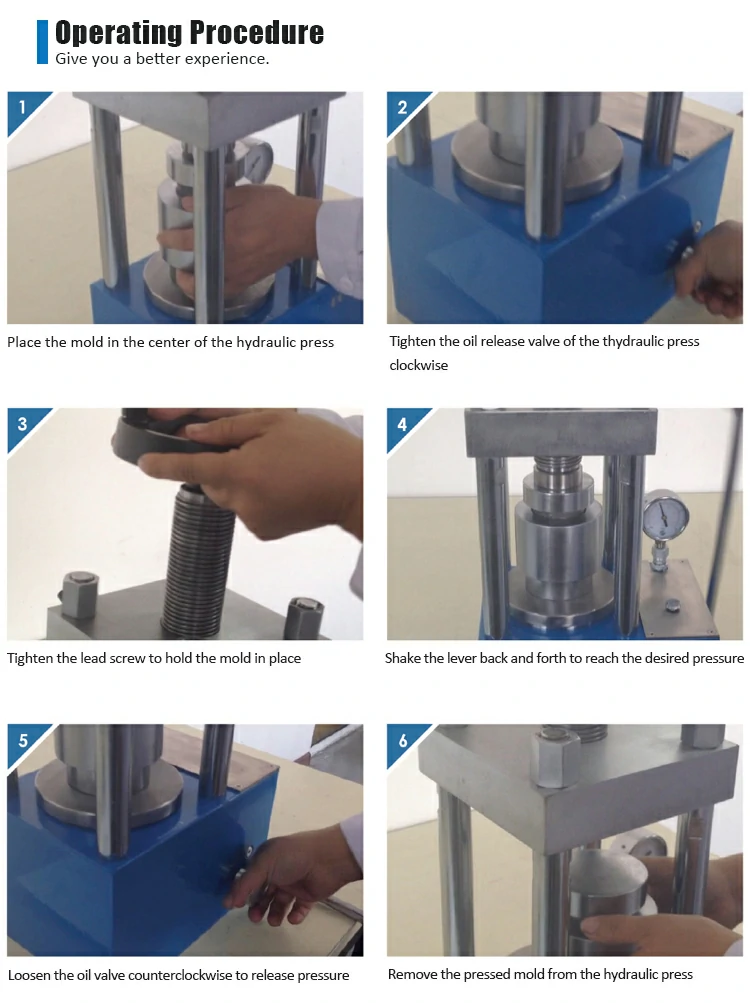

Instrument model YP-15 YP-24 YP-30 YP-40 Pressure limit 0-15T(0-32mpa) 0-24T(0-34mpa) 0-30T(0-31.5mpa) 0-40T(0-30mpa) Cylinder diameter 80mm 95mm 110mm 130mm Entirety structure Patent for utility models 2013 2 0040218.0 Pressure gage Pressure, pressure double scale display Travel of piston 30mm 40mm 50mm Pressure stability <1mpa/10min Table diameter Φ80mm Φ105mm Φ120mm Φ140mm Number of columns Four roots Column spacing 96×130mm 80×150mm 92×160mm 106×185mm Size 225×155×380mm 245×175×415mm 275×195×420mm 295×215×500mm Weight 28kg 42kg 56kg 75kg Operating Procedure
-

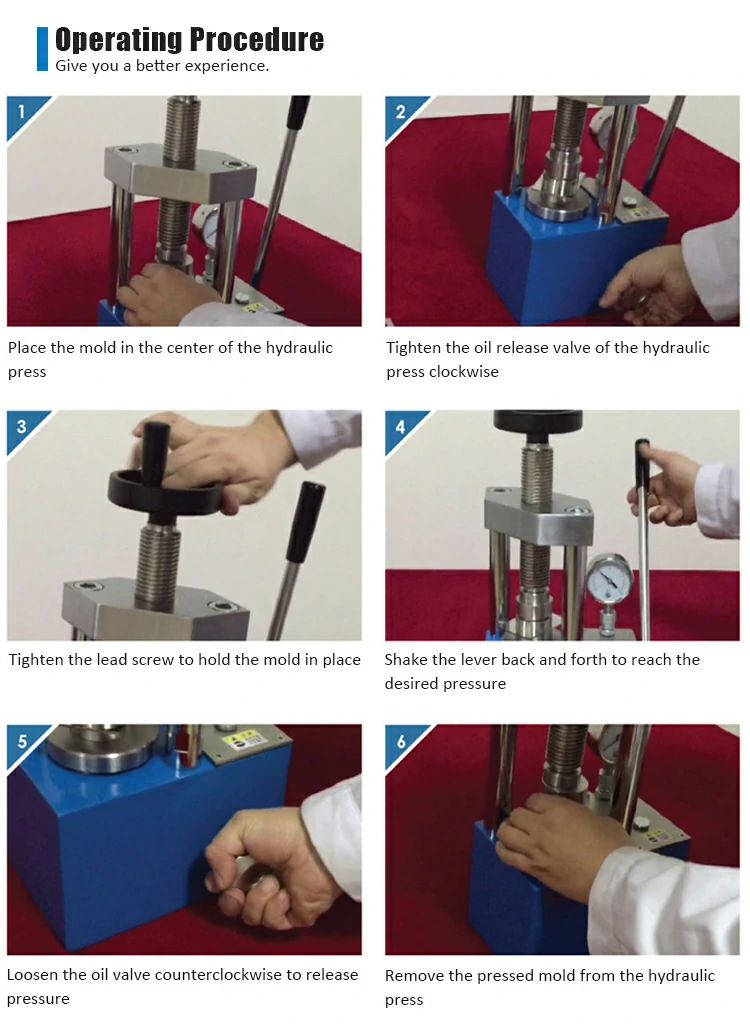

Place the mold in the center of the hydraulic press.
-
Tighten the oil release valve of the hydraulic press clockwise.
-
Tighten the lead screw to hold the mold in place.
-
Shake the lever back and forth until the desired pressure is reached.
-
Loosen the oil release valve counterclockwise to release the pressure.
-
Remove the pressed mold from the hydraulic press.

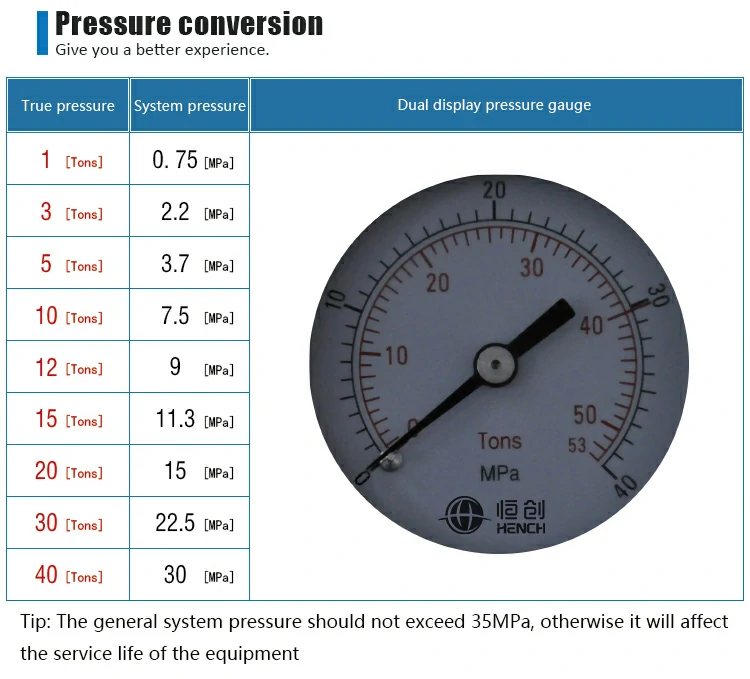

Pressure Conversion
True pressure System pressure 1 Tons 0.75 MPa 3 Tons 2.2 MPa 5 Tons 3.7 MPa 10 Tons 7.5 MPa 12 Tons 9 MPa 15 Tons 11.3 MPa 20 Tons 15 MPa 30 Tons 22.5 MPa 40 Tons 30 MPa Tip: The general system pressure should not exceed 35MPa, otherwise, it will affect the service life of the equipment.
About Hench Technology
Hench Technology is a trusted name among hydraulic press suppliers, specializing in laboratory pressing equipment that combines precision, safety, and durability. Their products are widely used in academic, industrial, and research settings, offering consistent performance even in demanding environments.
-
-
2/3/5/12/15-ton Manual Pointer Hydraulic Presses Machine YP
Configuration Instruction of Manual Pointer Hydraulic Presses Machine
According to customer requirements, the columns can be made taller. Various types of circular, square and irregular shapes within the pressure-bearing range can be selected.
Battery molds, etc.Optimized for Research Environments
The YP Series is designed for laboratory reliability:
-
Pointer pressure gauge with dual scale (Tons/MPa) for precise readings.
-
Integrated cylinder and piston construction minimizes leakage and enhances durability.
-
Compact build makes it suitable for glove box use or space-limited labs.
For extended applications, Hench also supplies other hydraulic press machines covering a wider capacity range.
Built-In Safety Measures
-
Overpressure stability tested within ±1 MPa over 10 minutes.
-
Strong protective housing reduces risks during operation.
-
Mechanical design ensures smooth, stable pressing performance.
Complete Laboratory Support
Alongside presses, Hench delivers comprehensive lab supplies including dies, molds, and accessories for sample preparation. This ensures researchers can build a reliable and efficient laboratory setup.

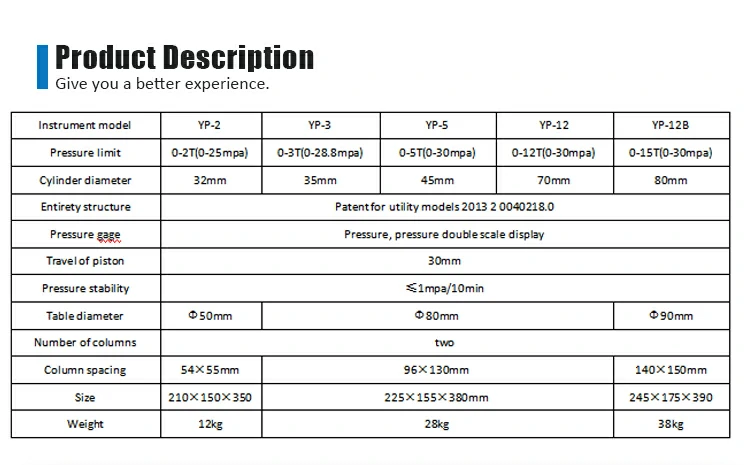

Product Description
Instrument model YP-2 YP-3 YP-5 YP-12 YP-12B Pressure limit 0-2T(0-25mpa) 0-3T(0-28.8mpa) 0-5T(0-30mpa) 0-12T(0-30mpa) 0-15T(0-30mpa) Cylinder diameter 32mm 35mm 45mm 70mm 80mm Entirety structure Patent for utility models 2013 2 0040218.0 Pressure gage Pressure, pressure double scale display Travel of piston 30mm Pressure stability ≤1mpa/10min Table diameter Φ50mm Φ80mm Φ90mm Number of columns two Column spacing 54×55mm 96×130mm 140×150mm Size 210×150×350 225×155×380mm 245×175×390 Weight 12kg 28kg 38kg Pressure Conversion
True pressure System pressure 1 Tons 0.75 MPa 3 Tons 2.2 MPa 5 Tons 3.7 MPa 10 Tons 7.5 MPa 12 Tons 9 MPa 15 Tons 11.3 MPa 20 Tons 15 MPa 30 Tons 22.5 MPa 40 Tons 30 MPa Tip: The general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
Operating Procedure
-
Place the mold in the center of the hydraulic press.
-
Tighten the oil release valve of the hydraulic press clockwise.
-
Tighten the lead screw to secure the mold in place.
-
Shake the lever back and forth until the desired pressure is reached.
-
Loosen the oil release valve counterclockwise to release the pressure.
-
Remove the pressed mold from the hydraulic press.
Why Choose Hench
As established hydraulic press suppliers, Hench combines technical expertise with a commitment to quality. Their presses are widely used by universities, research institutions, and industrial laboratories worldwide, ensuring consistent results.
[caption id="attachment_4761" align="alignnone" width="800"]

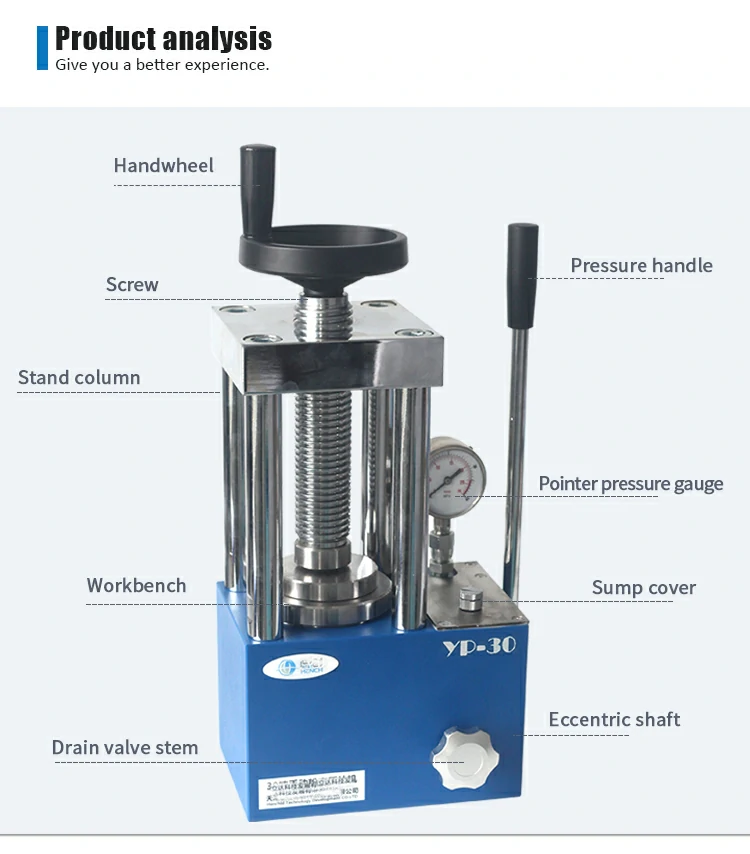

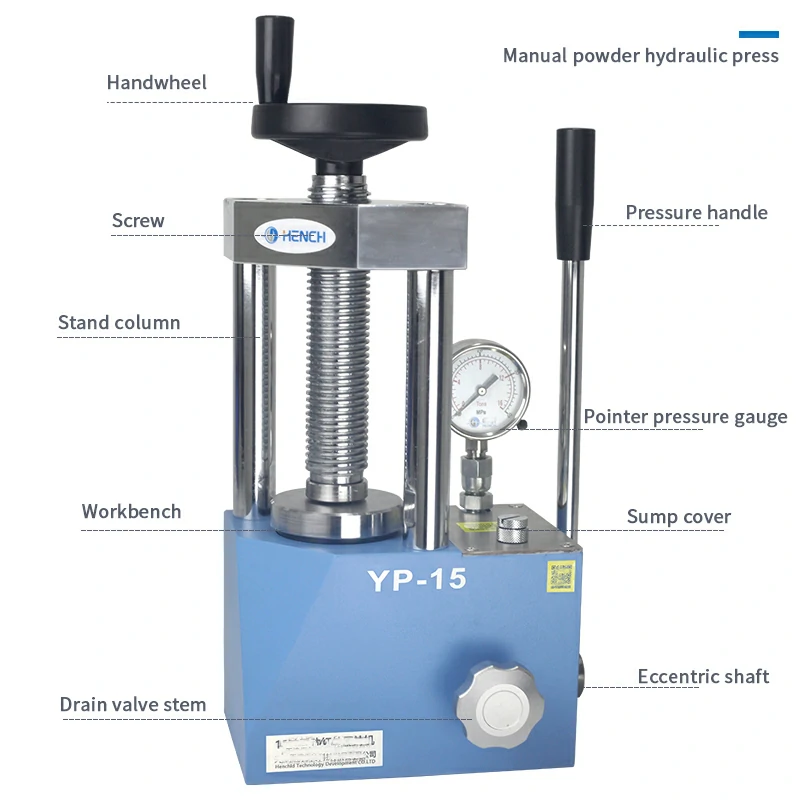

Manual Pointer Die Press Machine Analysis[/caption]
-
High-Quality Laboratory Presses for Precise Sample Preparation
Hench Technology offers advanced laboratory presses that ensure accurate and reproducible results for a variety of laboratory applications. Designed for efficiency and reliability, these presses are ideal for powders, tablets, and other sample types.
Trusted Lab Equipment Supplier
As a professional lab equipment supplier, Hench Technology provides comprehensive solutions and technical support for laboratory operations. Our commitment to innovation and quality ensures that every laboratory press meets the highest standards.
