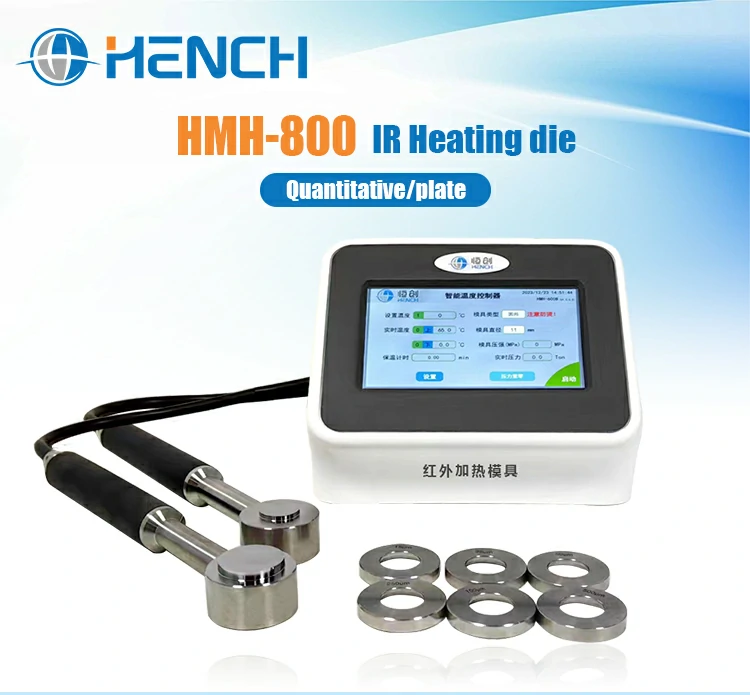

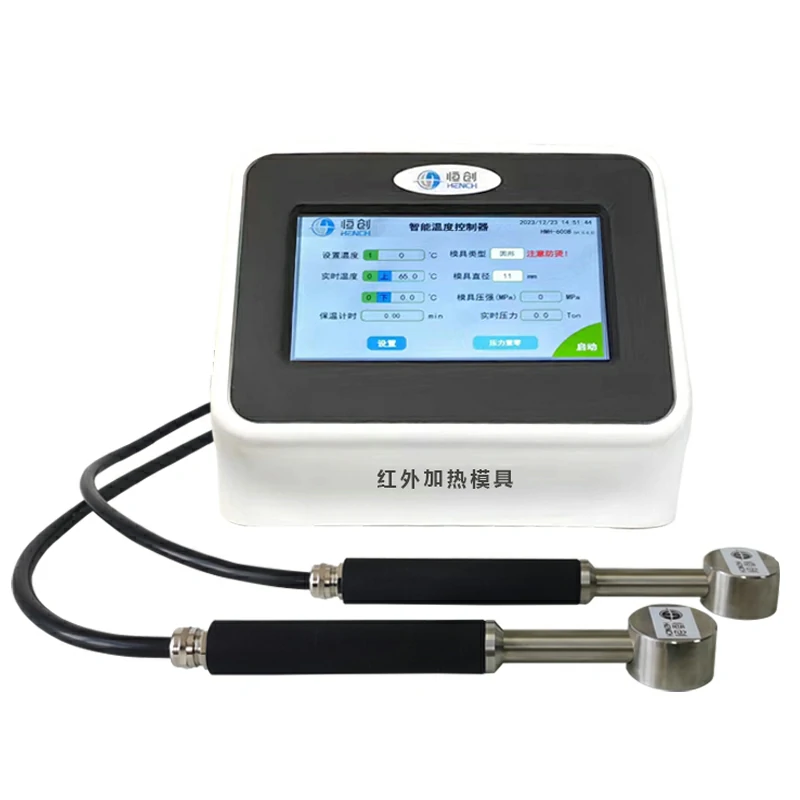

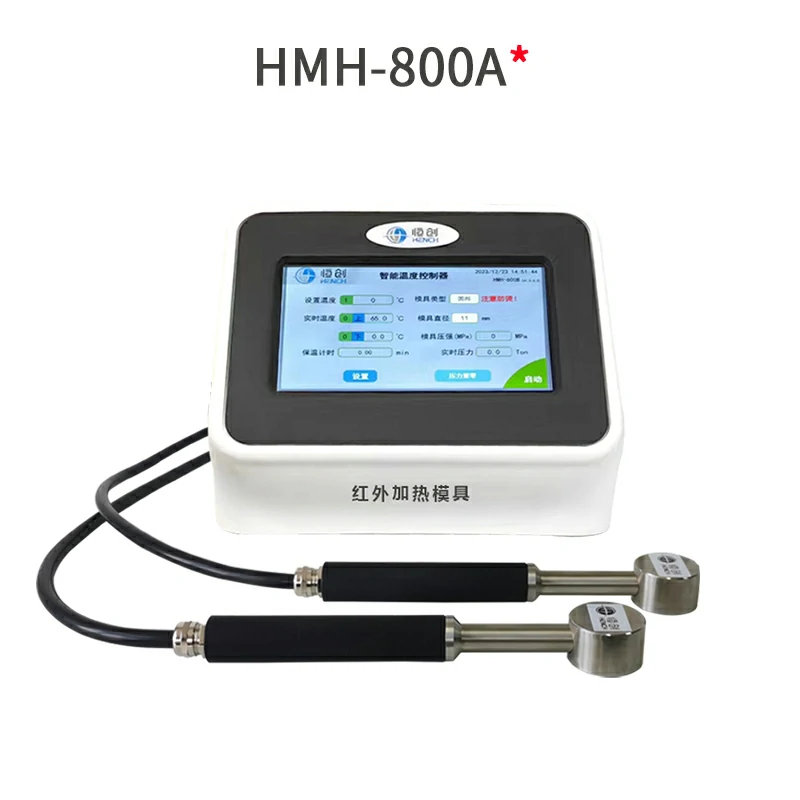

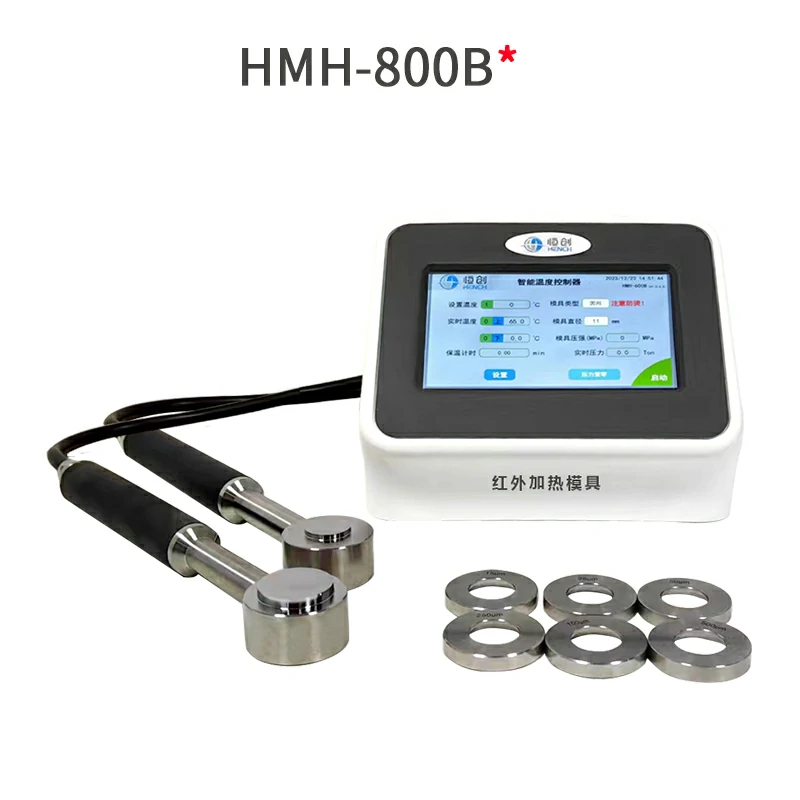

Heated Press for IR Samples HMH-800 Product Description
The Heated Press for IR Samples HMH-800 is a high-performance laboratory tool designed for preparing infrared samples with accuracy and efficiency. Equipped with an intelligent temperature controller, this heated press ensures precise thermal control and uniform pressure application, allowing consistent preparation of IR pellets and thin films for spectroscopy analysis.

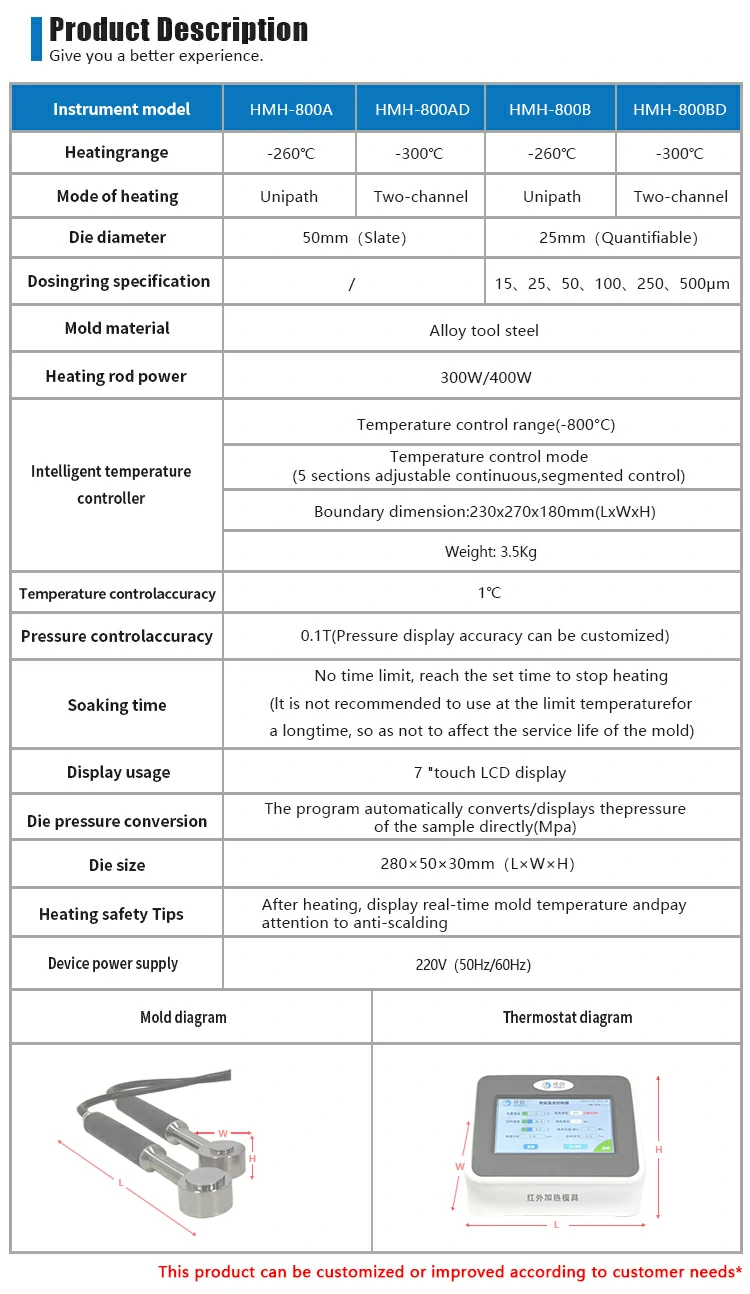

Product Description
Instrument model
HMI1-800A
HMI1-800AD
HMI1-800B
HMI1-800BD
Heatingrange
-260°C
-300°C
-260°C
-300°C
Mode of heating
Unipath
Two-channel
Unipath
Two-channel
Die diameter
50mm (Slate)
25mm (Quantifiable)
Dosingring specification
/
15, 25, 50, 100, 250, 500μm
Mold material
Alloy tool steel
Heating rod power
300W/400W
Intelligent temperature controller
Temperature control range(-800°C)
Temperature control mode (5 sections adjustable continuous,segmented control)
Boundary dimension:230x270x180mm(LxWxH)
Weight: 3.5Kg
Temperature controlaccuracy
1°C
Pressure controlaccuracy
0.1T(Pressure display accuracy can be customized)
Soaking time
No time limit, reach the set time to stop heating (It is not recommended to use at the limit temperaturefor a longtime, so as not to affect the service life of the mold)
Display usage
7 *touch LCD display
Die pressure conversion
The program automatically converts/displays thepressure of the sample directly(MPa)
Die size
280×50×30mm (L×W×H)
Heating safety Tips
After heating, display real-time mold temperature andpay attention to anti-scalding
Device power supply
220V (50Hz/60Hz)
This product can be customized or improved according to customer needs*
Advanced Control and Specifications
The HMH-800 features a wide temperature control range of -800°C, with five-section adjustable continuous and segmented temperature control. The press has precise control capabilities: temperature accuracy up to 1°C and pressure accuracy of 0.1T, which can be customized according to laboratory requirements. The compact design (230×270×180mm, 3.5kg) allows easy placement in laboratory environments. Its intelligent program automatically converts and displays the sample pressure in MPa, making operation intuitive and reliable.
Key Features:
Intelligent temperature controller with 5-section adjustable mode
High accuracy: 1°C temperature control, 0.1T pressure control
The HMH-800 is ideal for laboratories performing material science research, pharmaceutical analysis, and chemical testing. Operators can prepare IR samples quickly and reliably, ensuring uniform density and minimal sample loss. Combined with ir sample preparation techniques, it enables high-quality spectra and reproducible experimental results.

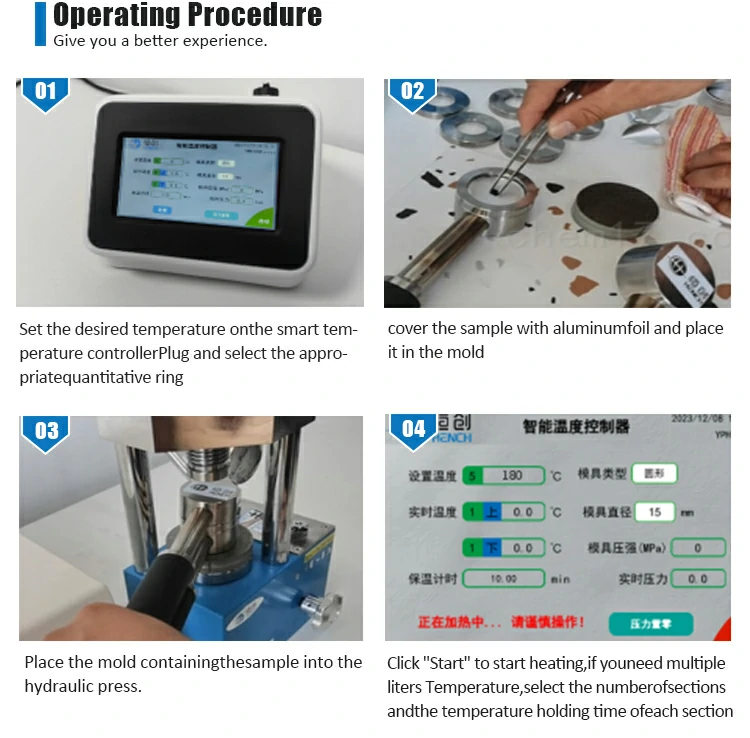

Operating Procedure
Set the desired temperature on the smart temperature controller. Plug in and select the appropriate quantitative ring.
Cover the sample with aluminum foil and place it in the mold.
Place the mold containing the sample into the hydraulic press.
Click "Start" to start heating. If you need multiple temperature levels, select the number of sections and the temperature holding time of each section.

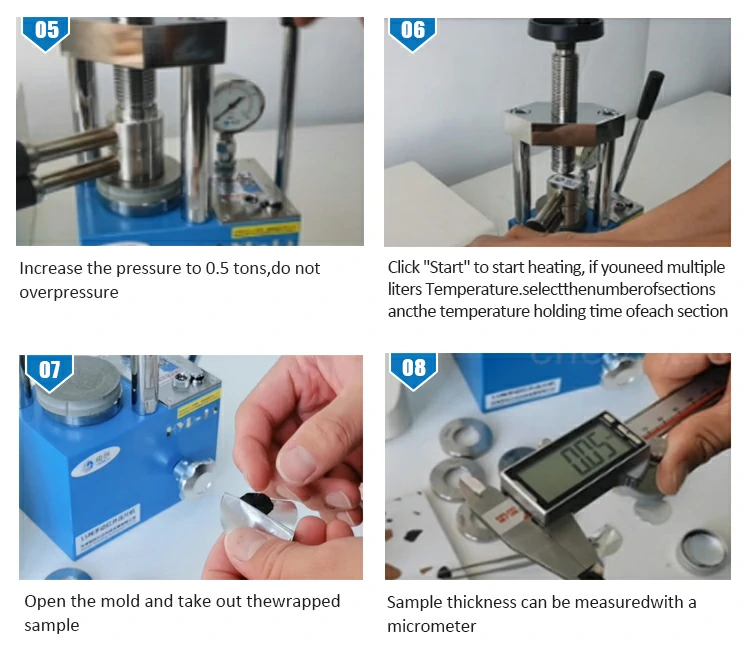

Increase the pressure to 0.5 tons, do not overpressure.
Click "Start" to start heating. If you need multiple temperature levels, select the number of sections and the temperature holding time of each section.
Open the mold and take out the wrapped sample.
Sample thickness can be measured with a micrometer.

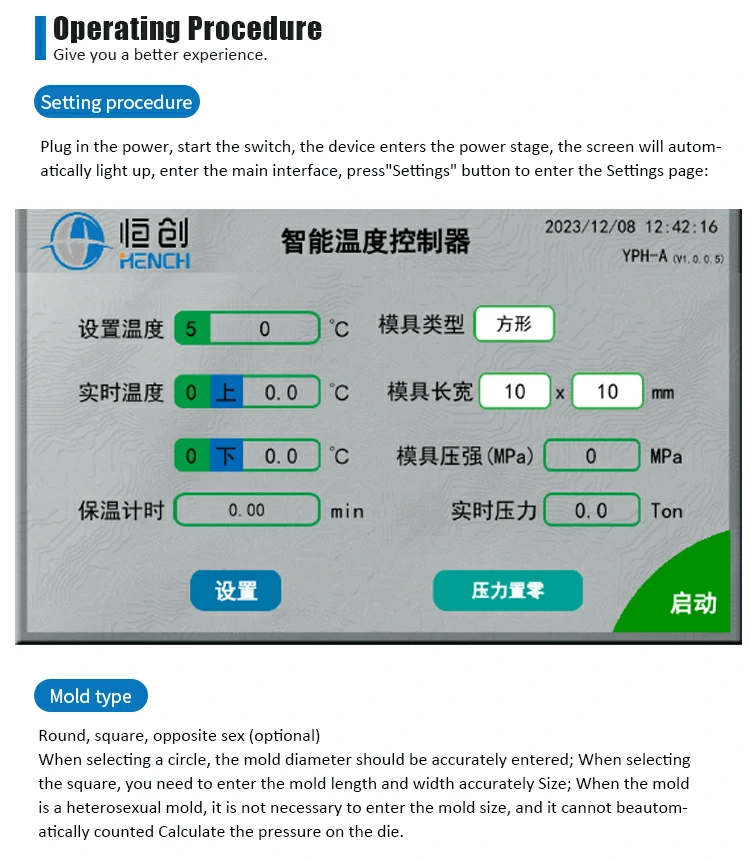

Setting Procedure
Plug in the power, start the switch, the device enters the power stage. The screen will automatically light up and enter the main interface. Press the "Settings" button to enter the Settings page.
Mold Type
Round, square, opposite sex (optional)
When selecting a circle, the mold diameter should be accurately entered.
When selecting a square, you need to enter the mold length and width accurately.
When the mold is a heterosexual mold, it is not necessary to enter the mold size, and it cannot automatically calculate the pressure on the die.

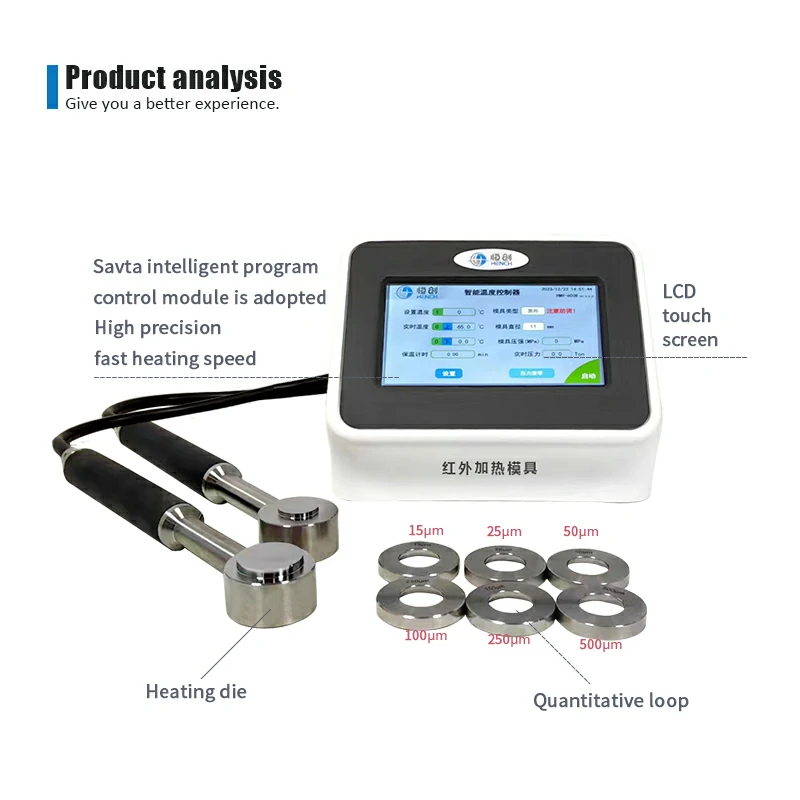

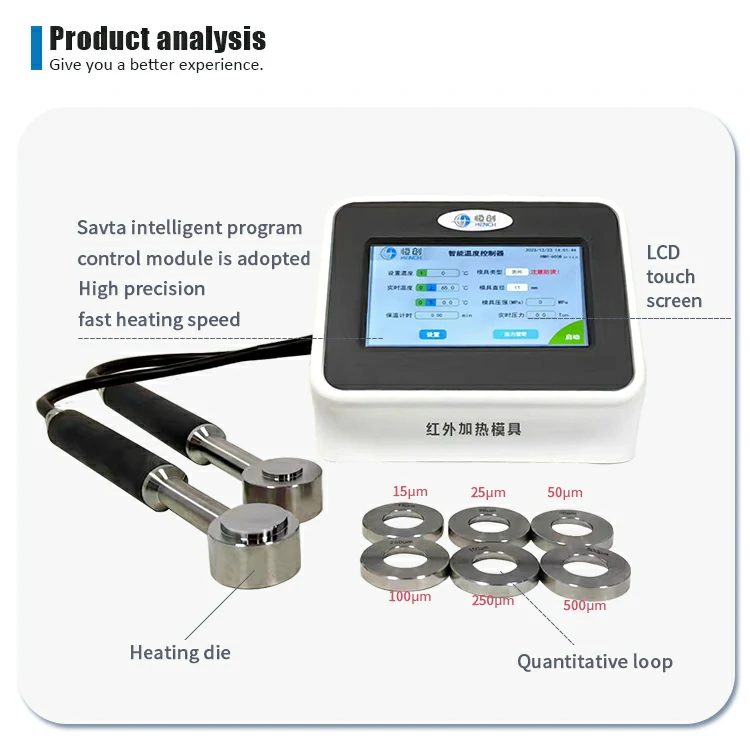

Product Analysis

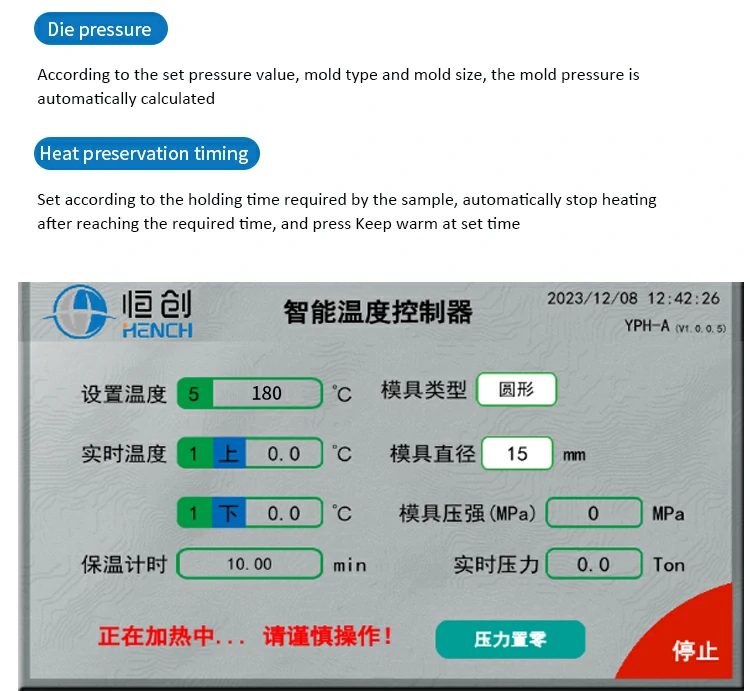

Die Pressure
According to the set pressure value, mold type, and mold size, the mold pressure is automatically calculated.
Heat Preservation Timing
Set according to the holding time required by the sample. The device automatically stops heating after reaching the required time, and keeps warm at the set time.
