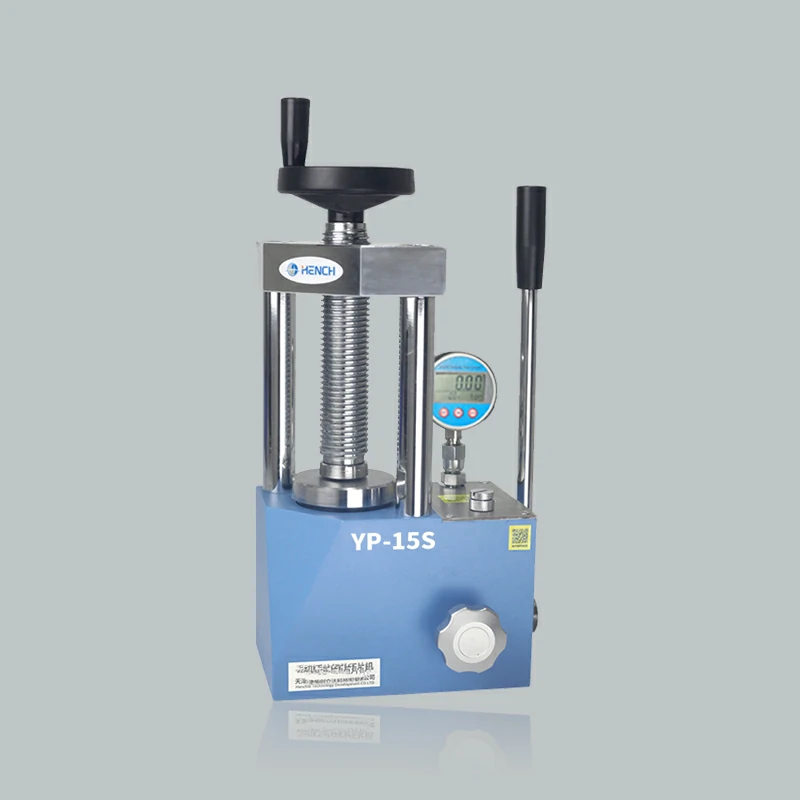

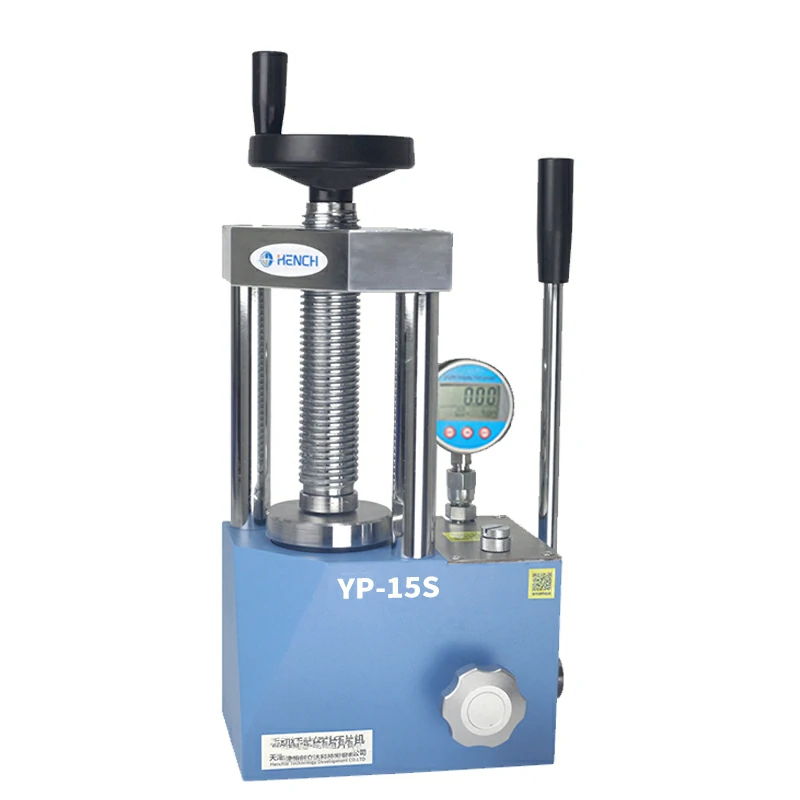

2/3/5/12/15-ton Manual Digital Hydraulic Laboratory Press YP-S
Manual Digital Hydraulic Laboratory Press
YP-S series manual digital display hydraulic press 2-15 tons, adopts double column design, suitable for small mold pressing or occasions with small tonnage requirements but strict pressure accuracy requirements.
Key Performance Features
-
Pressure range: 0–15 tons (0–33 MPa).
-
Cylinder diameter: 75 mm; piston travel: 32 mm.
-
Table diameter: Φ80 mm, with an effective workspace of 92 × 130 mm.
-
Pressure stability: ≤ 1 MPa over 10 minutes. Accurate readings through the DDNT digital sensor display, switching between tonnage (T) and MPa, resolution 0.01 T.
-
Compact footprint: 230 × 160 × 385 mm, weight approx 28 kg. Perfect for labs where space is limited.
Related Product Lines & Supplies
-
For other sizes or styles, we offer a broad range of hydraulic press machines that cover more tonnage and automated features.
-
To complete your laboratory workflow, see Hench’s selection of lab supplies including dies, sample prep tools, accessories.
-
For comparable presses with tablet-making functionality or manual/digital display control, our manual tablet press machines are designed for those needs.
Product Description
| Instrument model | YP-2S | YP-3S | YP-5S | YP-12S | YP-15BS |
| Pressure limit | 0-2T(0-25MPa) | 0-3T(0-28.8MPa) | 0-5T(0-31.4MPa) | 0-12T(0-30MPa) | 0-15T(0-34MPa) |
| Cylinder diameter | 32mm | 35mm | 45mm | 70mm | 80mm |
| Entirety structure | The equipment has no sealed connection to reduce oil leakage points | ||||
| Pressure gage | Digital display | ||||
| Travel of piston | 30mm | ||||
| Pressure stability | ≤1mpa/10min | ||||
| Table diameter | Φ50mm | Φ80mm | Φ90mm | ||
| Number of columns | two | ||||
| Column spacing | 85×120mm | 96×130mm | 140×150mm | ||
| Size | 210×150×350mm | 225×155×380mm | 245×175×395mm | ||
| Weight | 12kg | 28kg | 39kg | ||

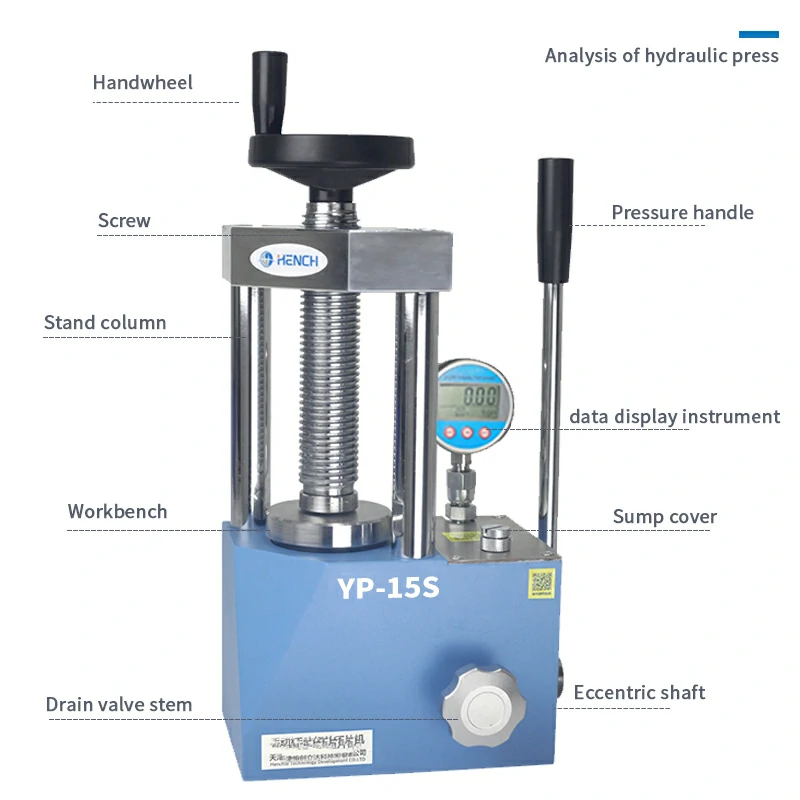

Operating Procedure
-
Place the mold in the center of the hydraulic press.
-
Tighten the oil release valve of the hydraulic press clockwise.
-
Tighten the lead screw to hold the mold in place.
-
Shake the lever back and forth until the desired pressure is reached.
-
Loosen the oil release valve counterclockwise to release the pressure.
-
Remove the pressed mold from the hydraulic press.
Pressure Conversion
| True pressure | System pressure |
| 1 Tons | 0.56 MPa |
| 3 Tons | 1.7 MPa |
| 5 Tons | 2.8 MPa |
| 10 Tons | 5.6 MPa |
| 20 Tons | 11.3 MPa |
| 30 Tons | 17 MPa |
| 40 Tons | 22.6 MPa |
| 50 Tons | 28.3 MPa |
| 60 Tons | 34 MPa |
Tip: Enter 0001 to enter the menu, adjust the Unit parameter, you can modify the ton, MPA display.
